Description

Part Number: PWRINV8K12W

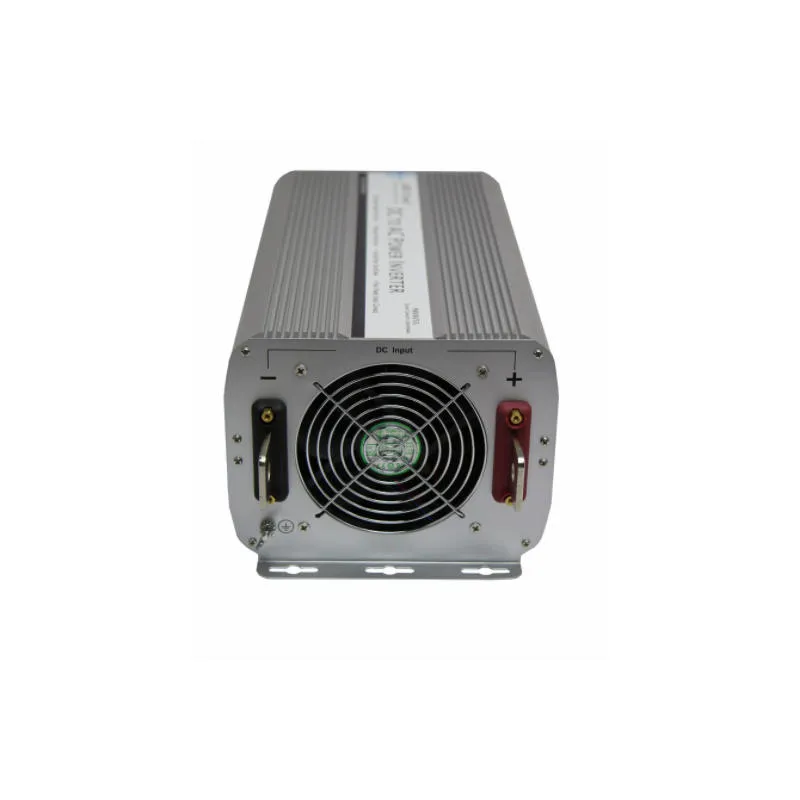

The Aims PWRINV8K12W 8000 watt 12 volt 120VAC Power inverter is DC to AC technology at its finest.— The new PWRINV8K12W 8000 watt 12 volt modified sine inverter is smaller, lighter, and more efficient than the older version of this model. This unit is trusted among business owners, especially mobile businesses, all around the world. AIMS Power developed a new version of the PWRINV8K12W due to the development of new technology and the high demand among it’s customers.

Features:

• 8000W max continuous power Modified sine wave with Pulse Width Modulation technology (soft start)
• Volt meter on front panel to monitor your battery voltage
• Amp meter on front panel to monitor your current use (rate at which battery is drained)
• Over Temperature LED indicator
• Over Load LED indicator
• AC direct connect terminal block
• On/off switch
• Over Temperature protection
• Over Load protection
• Dual cooling fans thermally controlled
• Internally fuse protected
• AC output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor

Specifications:

• Continuous output power: 8000 Watts
• Surge power capability (peak power): 16000 Watts
• dc input / operating voltage: 10 to 15 Volts
• Output voltage: 120 Volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10.0 +/- 0.5 Volts
• No load current: < 1.3 DC amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
• AC Output Socket Type: quadruple Type 2 -3 prong
• High input voltage protection: 15V-17V
• Low input voltage shutdown: 10V Internal fuse protection
• Product size (L x W x H): 19” X 7” X 6.5”
• Weight: unit 19lbs boxed 24 lbs
• UL maximum recommended per outlet 1500W
